Name: Home Appliance Door Easy Lifting Good Quality Rolling Tubular Motor
Brand: Home Appliance Door Easy Lifting Good Quality Rolling Tubular Motor
SKU: XP92M
Price: 1 USD
Availability: InStock
Rating: 4.8 (108 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Model Number: XP92M

Color: Any color is available

Type: Asynchronous Motor

Usage: Household Appliance

Voltage: 220V

Speed: 12rpm/9rpm

Phase: Single

Certificazione: CCC CE TUV

Material: Metal

Power: 626w~980w

Warranty: 5 Years

Informazioni di base

Certificazione: CCC CE TUV

Model Number: XP92M

Termini di pagamento e spedizione

Packaging Details: in standard export cartons and pallets

Supply Ability: 8000 Piece/Pieces per Month

Descrizione di prodotto

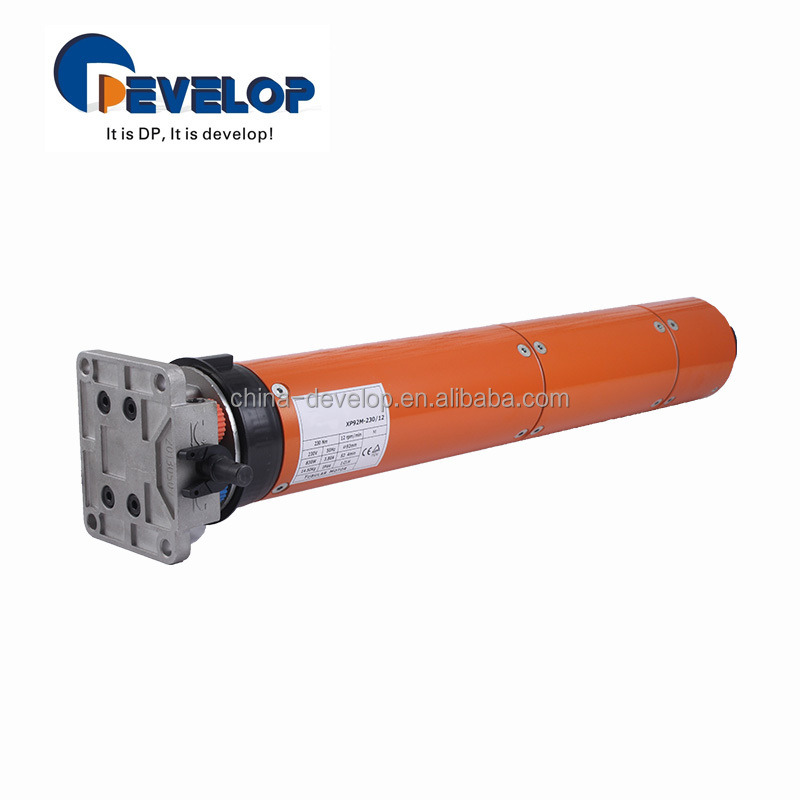

Easy lifting top quality rolling door tubular motor

1. The max. Lift capacity reached 500kg with different size of tubes

2. electromagnetic brake system are adopted to make sure the motor security

3. Manual override devices ensure the normal operating in case of emergency and power failure

4. 5 year of warranty

Rated torque (N.m)	Rated Voltage (V)	Rated Frequency	Rated Power Input	Tube Diameter
Rated torque (N.m)	Rated Voltage (V)	Rated Frequency	Rated Power Input	Tube Diameter
180N.m	230V	50HZ	626W	92MM
230N.m	230V	50HZ	830W	92MM
300N.m	230V	50HZ	920W	92MM
330N.m	230V	50HZ	980W	92MM
500N.m	230V	50HZ	980W	92MM
Rated Current (A)	Running time (Min)	Rated Speed(Rpm)	Protection Index(IP)	Insulation class
Rated Current (A)	Running time (Min)	Rated Speed(Rpm)	Protection Index(IP)	Insulation class
2.8A	4MIN	12RPM	IP44	Class H
3.8A	4MIN	12RPM	IP44	Class H
4.2A	4MIN	9RPM	IP44	Class H
4.5A	4MIN	9RPM	IP44	Class H
4.5A	4MIN	5.5RPM	IP44	Class H
